Description
PIR motion sensor
Manufactured from high quality material and components
Compact design
Suitable for various applications
Easy for wiring and installation
Model Number: PSC-3R1
PIR Switch Controller
Voltage : 220-240V
Loading : Max. 500W Incandescent (Resistive load), 200W Fluorescent (Inductive load)
Operation: Passive infrared, Time preset in 5 mins
Detection Angle : 120 degree
Electronic Switch Driver Included
Adjustable Eyelid for small angle detection
Construction: PP, PBT

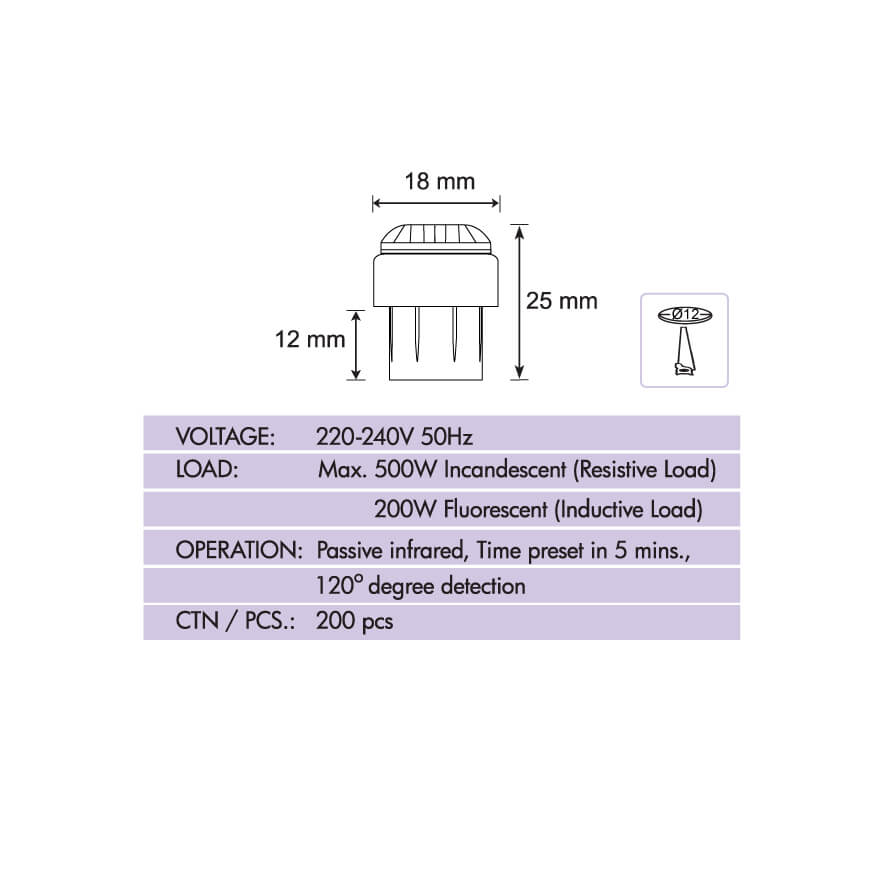

Dimension: 18mm dia. x 25mm (H)
